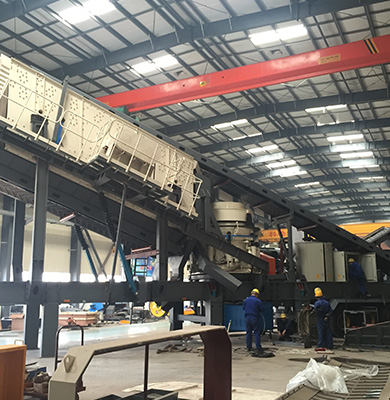

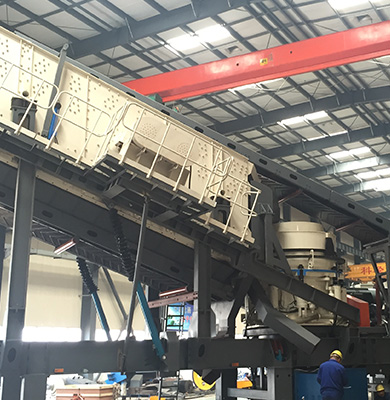

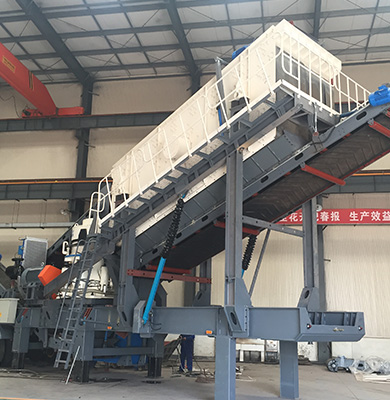

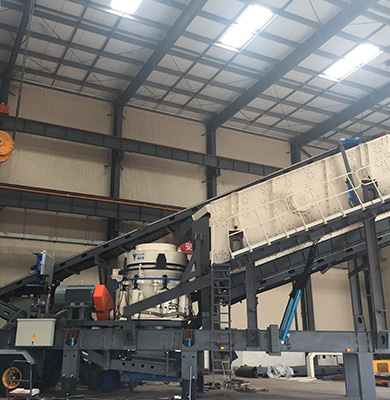

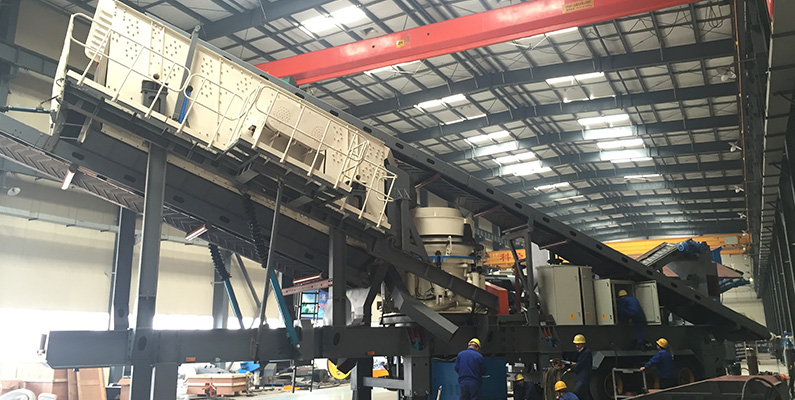

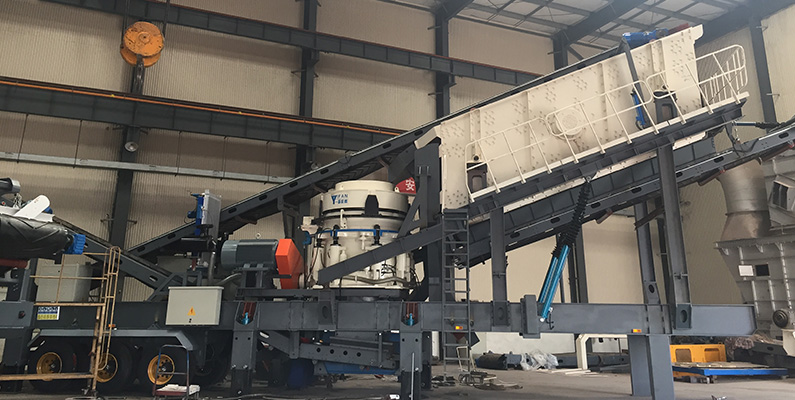

Portable Cone Crusher Plant

Mobile cone crushing and screening plants is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The plants have the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.

Feeding Size: 760-220mm

Capacity: 50-250tph

Get Price Send Messages

Advantage Principle Technical specification Gallery Inquiry Relater Products

Portable Cone Crusher Plant Advantage

Based on different requirement, it can be used for independent using or combine with other mobile crushing plant to do the second crushing stage or third crushing stage.

The cone crushing and screening plants can directly reach the quarry site by trailer, and eliminates the cumbersome steel frame structure and foundation construction, saving a lot of time.

The mobile crushing plant can process materials on site without having to move the materials off site for reprocessing, which greatly reduces the transportation cost of materials.

With Reasonable and compact structure, it can save the space and improves the flexibility of site stationing.

Working principle

Mobile cone crushing and screening plant is composition of impact crusher vibrating screen，mounted belt conveyor and electric cabinet ，Half Suspension Trailer Chassis, and other supporting parts. station accepts the materials from primary crushing station, then makes multistage screen to them according to the specific need; the bigger material enters into impact crusher and is crushed again, then returns to vibrating screen, so circulates.

Technical Specification

Model	WQ900SC	WQ1200SC	WQ11324SC
Transportation Dimension
Length（mm）	11200	11800	12300
Width（mm）	2743	2743	2900
Height（mm）	4200	4200	4200
Axle （kg）	15500	16300	31100
King Pin Load（kg）	12900	14200	17600
Cone Crusher
Model	PSG900SC	PYB1200SC	PSG1324SC
Capacity（T/H）	40-120	80-150	100-180
Mounted Belt Conveyor	B800X7.2M	B1000X8.2M	B1000X7.2M
Screen
Model	4YK1545	4YK1860	4YK1860
No of Axle	2	3	3
