Portable Jaw Crusher Plant

Mobile Jaw Crushing Plant is used to crush the large material and screen the crushed materials primarily. The plant has the advantage of reasonable match, unobstructed material discharge, reliable run, convenient operation, high efficiency and energy conservation. The good mobility can make it move in and between different quarries. It can also work with other plants to meet different feed requirements.

Feeding Size: 425-750mm

Capacity: 40-350tph

Get Price Send Messages

Advantage Principle Technical specification Gallery Inquiry Relater Products

Portable Jaw Crusher Plant Advantages

Based on different requirement, it can be used for independent using or combine with other mobile crushing plant to do the second crushing stage or third crushing stage.

The mobile jaw crusher can directly reach the quarry site by trailer, and eliminates the cumbersome steel frame structure and foundation construction, saving a lot of time.

The mobile crushing plant can process materials on site without having to move the materials off site for reprocessing, which greatly reduces the transportation cost of materials.

With Reasonable and compact structure, it can save the space and improves the flexibility of site stationing.

Working principle

Mobile Jaw crushing plant includes Vibrating Feeder, Jaw Crusher, Half Suspension Trailer Chassis, and other supporting parts. The material is fed into the hopper by the loader. Vibrating Feeder can prescreen the material during its working process, and the material whose diameter is smaller than screen bar distance falls from the feeder. The bigger material will enter into Jaw Crusher. The crushed material will be carried out by the belt conveyor.

Technical Specification

Model	WQ600E	WQ750E	WQ900E	WQ1060E	WQ1200E
Transportation Dimension
Length（mm）	8600	9600	11097	13300	15800
Width（mm）	2520	2520	3759	2900	2900
Height（mm）	3770	3500	3500	4440	4500
Axle （kg）	10121	14500	21380	38430	64000
King Pin Load（kg）	5118	7500	10890	19450	34000
Feeder
Model	ZSW0265Y	ZSW3085Y	ZSW3896Y	ZSW4211Y	ZSW4913Y
Hopper Volume (CBM)	3CBM	4CBM	7CBM	10CBM	10CBM
Jaw Crusher
Model	PE400X600	PE500X750	PE600X900	PE750X1060	PE900X1200
Capacity（T/H）	15-55	50-100	45-130	105-225	150-360
Mounted Belt Conveyor	B650X6M	B800X7M	B1000X8M	B1000X11M	B1200X13M
No of Axle	1	2	2	3	3

Still not finding what you're looking for?
Contact our consultants for more available products.

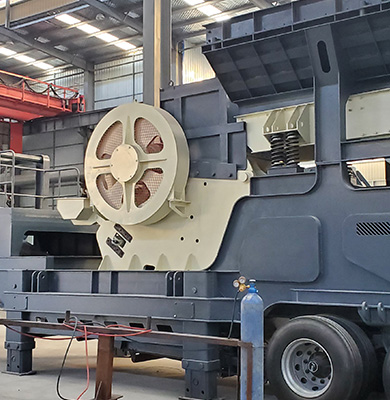

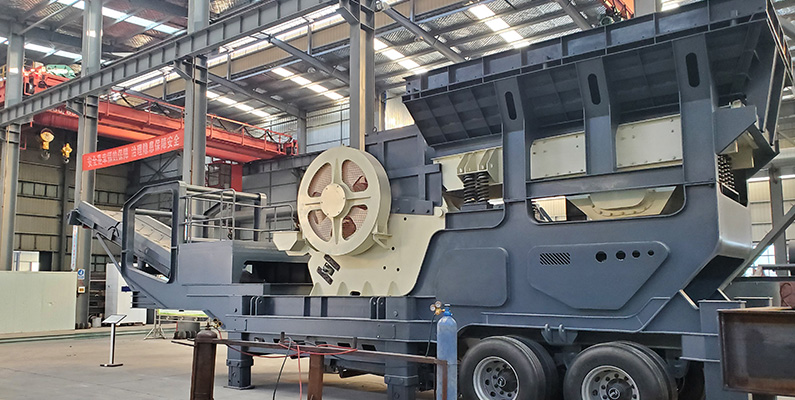

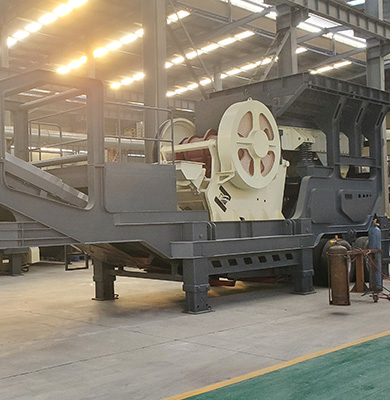

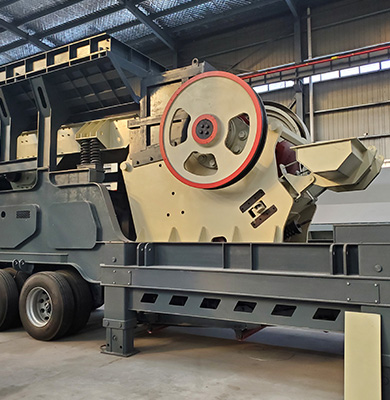

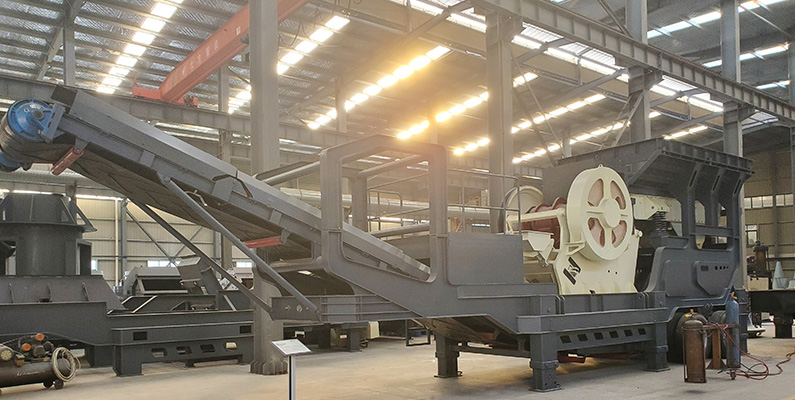

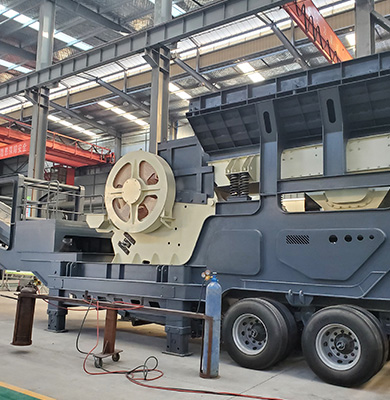

Products Gallery
