Portable VSI Crusher Plant

Portable VSI Crusher Plant is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The plants have the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.

Feeding Size: 30-35mm

Capacity: 80-200tph

Get Price Send Messages

Advantage Principle Technical specification Gallery Inquiry Relater Products

Portable VSI Crusher Plant Advantage

Based on different requirement, it can be used for independent using or combine with other mobile crushing plant to do the second crushing stage or third crushing stage.

The mobile VSI crushing and screening plant can directly reach the quarry site by trailer, and eliminates the cumbersome steel frame structure and foundation construction, saving a lot of time.

The mobile crushing plant can process materials on site without having to move the materials off site for reprocessing, which greatly reduces the transportation cost of materials.

With Reasonable and compact structure, it can save the space and improves the flexibility of site stationing.

Working principle

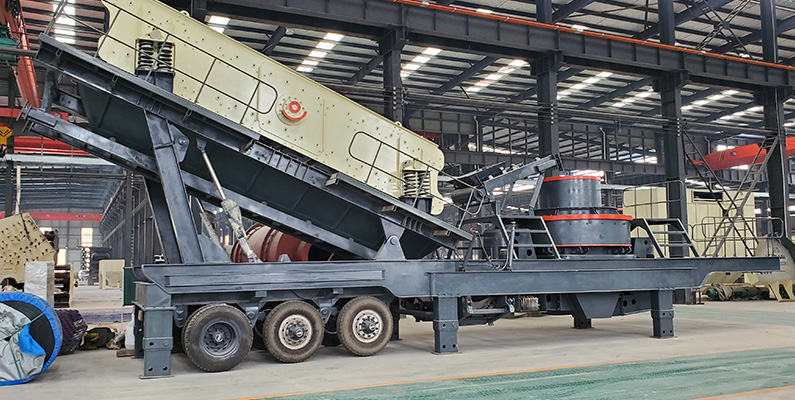

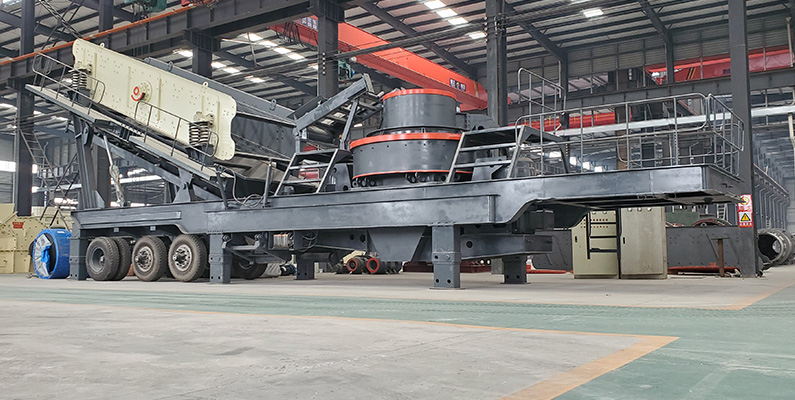

Mobile VSI crushing and screening plant is composition of VSI crusher vibrating screen，mounted belt conveyor and electric cabinet ，Half Suspension Trailer Chassis, and other supporting parts. station accepts the materials from primary crushing station, then makes multistage screen to them according to the specific need; the bigger material enters into impact crusher and is crushed again, then returns to vibrating screen, so circulates.

Technical Specification

Model	WQ8518VSI	WQ9526VSI	WQ1140VSI
Transportation Dimension
Length（mm）	11280	15470	15420
Width（mm）	2780	2780	2780
Height（mm）	4100	4180	4250
Axle （kg）	19200	22300	21700
King Pin Load（kg）	8800	10300	11500
Sand Maker Crusher
Model	VSI8518	VSI9526	VSI1140
Capacity（T/H）	100-130	150-190	225-260
Mounted Belt Conveyor	B800X7.2M	B1000X8.6M	B1000X8.6M
Screen
Model	3YK1548	3YK1860	3YK2160
No of Axle	2	3	3
