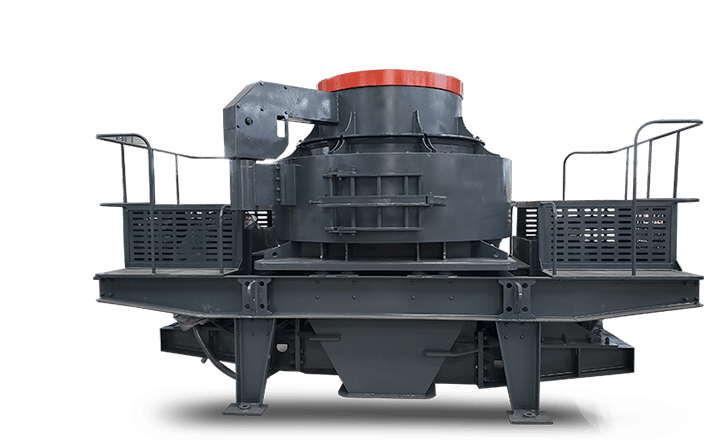

VSI Sand Maker Crusher

VSI Sand Maker Crusher advantages

High efficiency of crushing, has the function of fine crushing and rough grinding.

Simple structure , easy to set up and repair, low cost in operation.

Excellent shape of product, mainly the product shape is cubic with small fraction of elongated flaky particle shape, suitable for aggregate shaping, manufactured sand.

Thin oil lubrication, complete protection measures, high automation degree and long service life.

Working principle

VSI Series Vertical Shaft Impact Crusher adopts a new impeller with the stone inner liner (exclude the open impeller). The impeller revolving fast as a pump rips the stone into the crushing chamber. The material feed from the top of the machine should be accelerated in the impeller. The speed of the material is up to 50-85m/s. The impeller throws the speedy material into the chamber. In this process , stone will be crushed into the sand an fall down form the bottom part .

Technical Specification

Model		VSI-7611	VSI-8518	VSI-9526	VSI-1140	VSI-1145
Capacity（t/h）	Cascade and Center Feeding	120-180	200-260	300-360	450-520	490-600
Capacity（t/h）	Center Feeding	60-90	100-130	150-190	225-260	250-310
Feeding Size（mm）	Soft Material	＜35	＜40	＜45	＜50	＜50
Feeding Size（mm）	Hard Material	＜30	＜35	＜40	＜45	＜45
Rotation Speed (r/min)		1700-1890	1520-1690	1360-1510	1180-1310	1180-1280
Power of Double Motor (kw)		110-150	180-220	264-320	400-440	400-440
Overall Dimension（mm）		3700x2150x2100	4140x2280x2425	4560x2447x2278	5000x2700x3300	5100x2790x3320
Vibrating Sensor		Inspection scope：0.1-20mm/s ,it can be adjusted continuously.
Lubrication Station	Power Of Double Oil Pump (kw)	2x0.31
	Safety	Double oil pumps to supply the lubrication oil . stop automatically without oil flow oil pressure . water cooled.
	Overall Dimension（mm）	820x520x1270

Note: 1. The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness material and bulk density with 1.6x103kg/m³. Capacities are relative to physical character and type of feeding, feeding size and composition and so on.

Still not finding what you're looking for?
Contact our consultants for more available products.

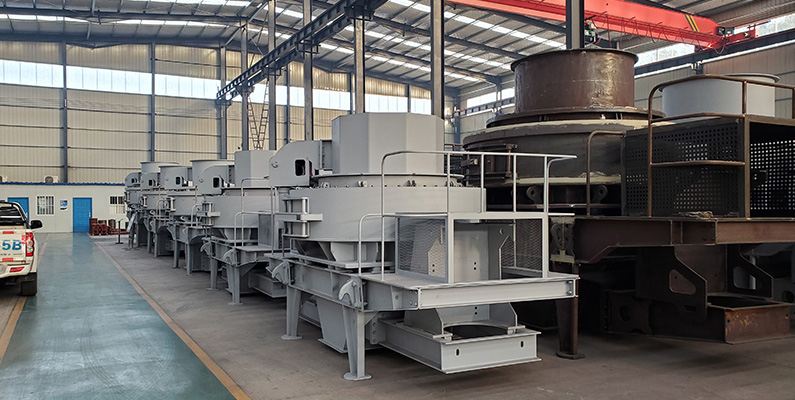

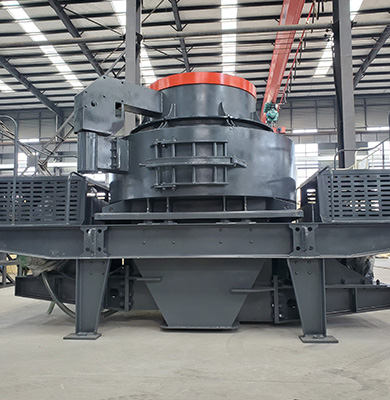

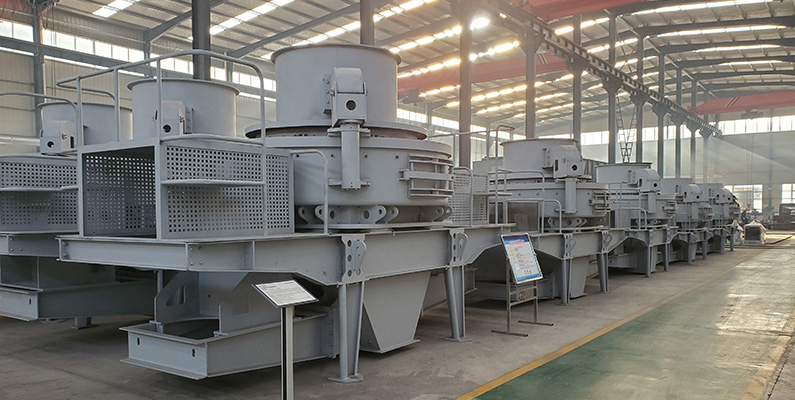

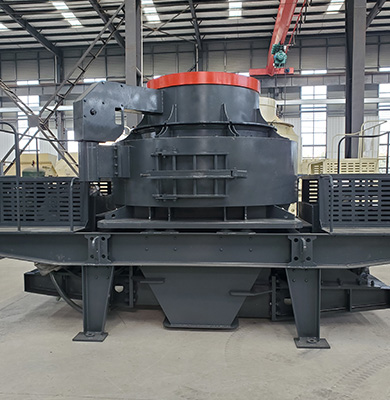

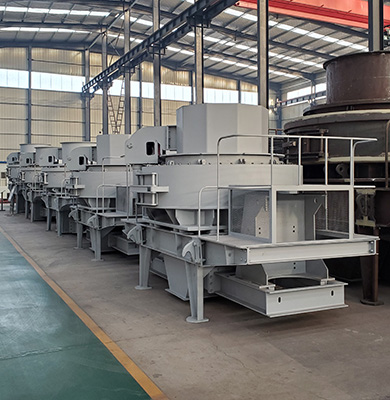

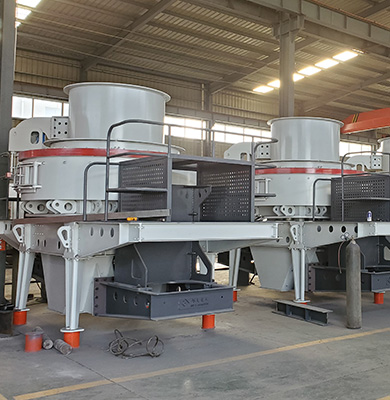

Products Gallery
