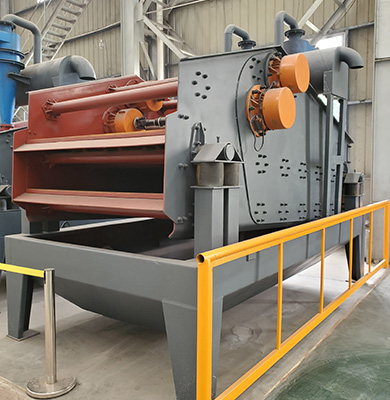

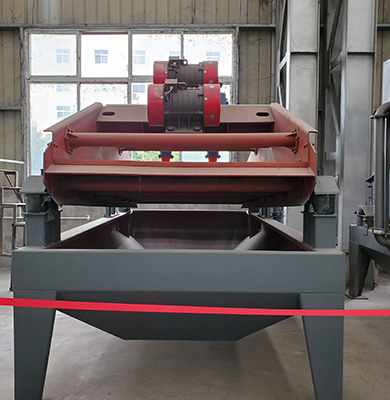

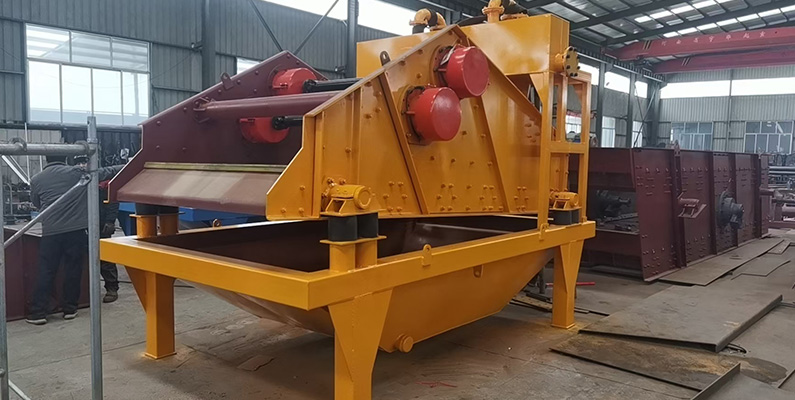

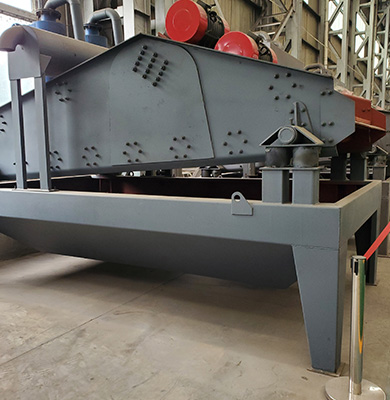

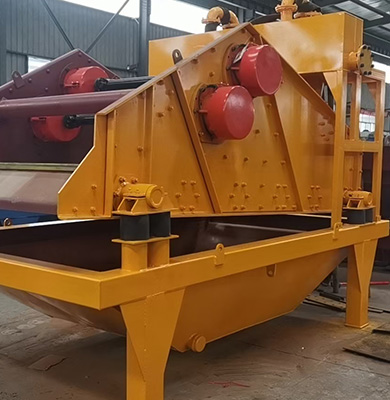

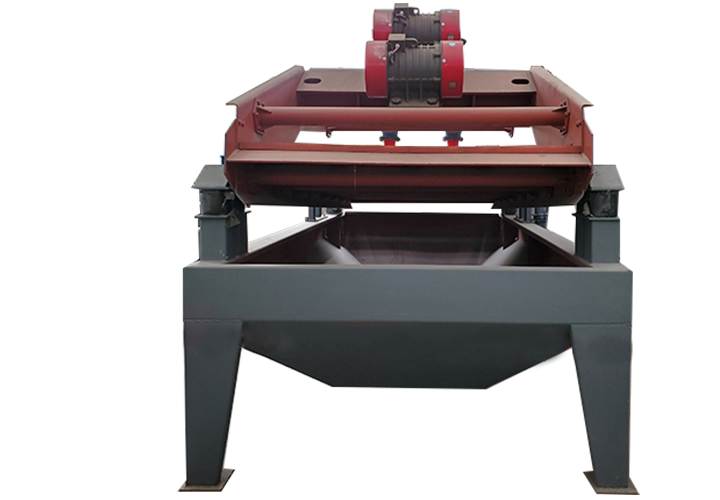

Sand Recycling Machine

manufactured sand at present, mostly utilize a wet production process, regardless adopting any style of sand washer, its disadvantage is that the fine sand (≤0.16mm) run off seriously .this is not only decrease the yield ,bust also seriously influence the sand gradation , which results in the gradation being not reasonable ,the fineness module being partial to thick and largely lowering the product quality of the manufactured sand . So much fine sand are exhausted will also result in the pollution of the environment.
In order to solve the above problems, we research and fabricate the SCS series sand collecting system, the are utilized widely in aggregate processing system, the processing system of glass raw material ,the production line of manufactured sand, and so on , they can solve the fine sand recovery problems.
Feeding Size: 0-0.16mm
Capacity: 10-200tph
Sand Recycling Machine
Sand collector advantage
01
Solving the sand loss problem effectively;
02
Long service life and no blocking phenomenon;
03
Maximum sand recovery rate, unsurpassed technology and economic advantage;
04
Customized specifications according to customers’ requirements.
Working principle

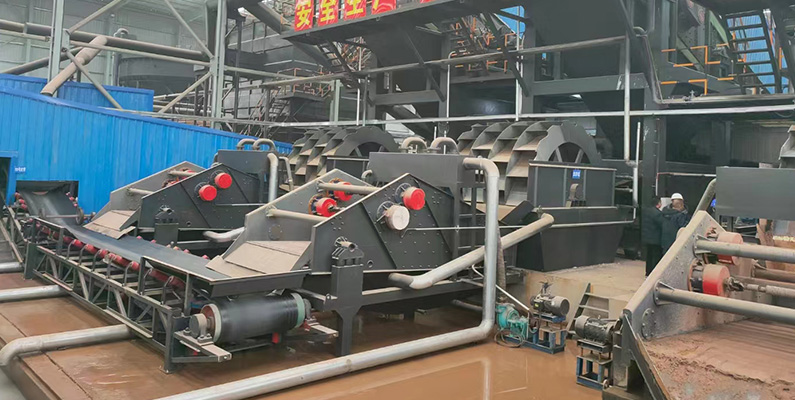

The pump sends the sand and water mixture to hydro cyclone, the fine sand with eccentricity is sent to vibrating screen. The fine sand and water are effectively separated after dehydration, and little fine sand and mud go back to washing trough. When the liquid surface of the washing trough is high, the fine sand discharges from output opening. The linear vibrating screen can recover material with concentration 70%-85%. Adjusting fineness modulus can be realized by changing pump rotation speed, changing pulp consistency, adjusting overflow water and changing sand sinking mouth. By the process above, the fine sand recovery system can finish three functions, cleaning, dehydration and grading.
Technical Specification
Model pump Cyclone(mm) vibrating screen Capacity (tph)
Power (kw) Size (inch) Model Deck Size(㎡) Power(kw)
SCS-06-300 7.5 2’’ 300 0.6x1.5 0.9 2x0.75 10-40
SCS-08-300 15 3’’ 300 0.8x2.25 1.8 2x1.5 40-80
SCS-10-350 18.5 4’’ 350 1.0x225 2.25 2x1.5 70-120
SCS-12-550 37 5’’ 550 1.2x3.0 3.6 2x2.2 100-200
