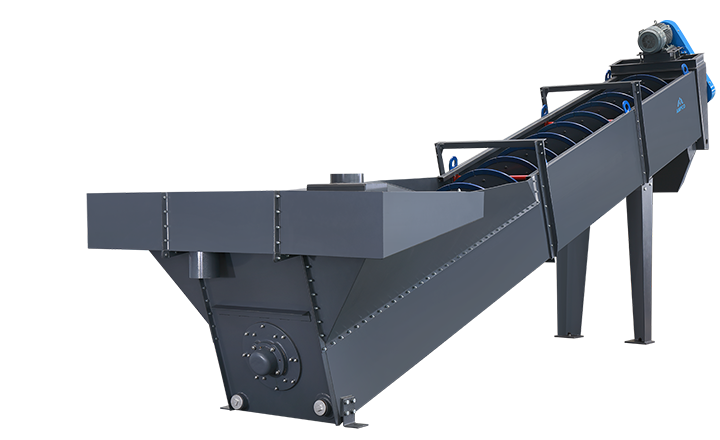

XL sand washer

XL screw sand washer applies to be used in building site, grave plants, glass plants, hydropower station to wash, pick out, classifies and dehydrates the sand, applies to beneficiation plants as well.

Feeding Size: 0-10mm

Capacity: 40-350tph

Get Price Send Messages

Advantage Principle Technical specification Gallery Inquiry Relater Products

XL sand washer advantage

Simple structure and stable operation

Bearing is separated from water and materials to avid premature contamination and rusting of the machine.

Less loss of washed material, high selection and washing efficiency and can meet the needs of high -grade materials.

Long service time ,almost no wearing parts, can greatly reduce the cost of operation.

Working principle

Spiral sand washing machine is tilted decorated tank formed by the lower precipitation. Spiral head sank into the sedimentation tanks. The screw is driven by the motor through the gearbox. The porous plate that locates in the bottom of the sedimentation tanks pour into clean water so as to completing cleaning, dehydration and grading.

Technical Specification

Model	Screw Diameter（㎜）	Length of Tub （㎜）	Max Feed Size（㎜）	Capacity（t/h）	Speed of Screw （ r/min)	Motor Power （ kw ）	Water Consumption（ t/h)
XL610	610	7225	≤ 10	40-50	32	7.5	6-63
XL762	672	7620	≤ 10	50-75	26	11	9-63
XL915	915	7585	≤ 10	100	21	11	10-80
2XL915	915	7585	≤ 10	200	21	2*11	20-160
XL1115	1115	9782	≤ 10	175	17	15	20-150
2XL1115	1115	9782	≤ 10	350	17	2*15	40-300
