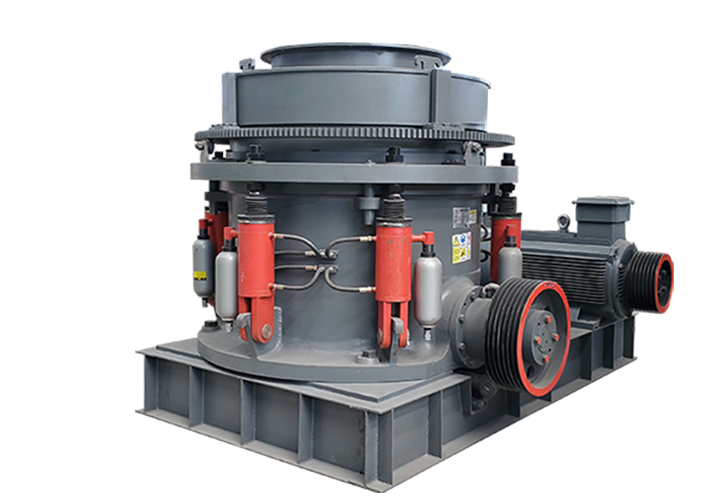

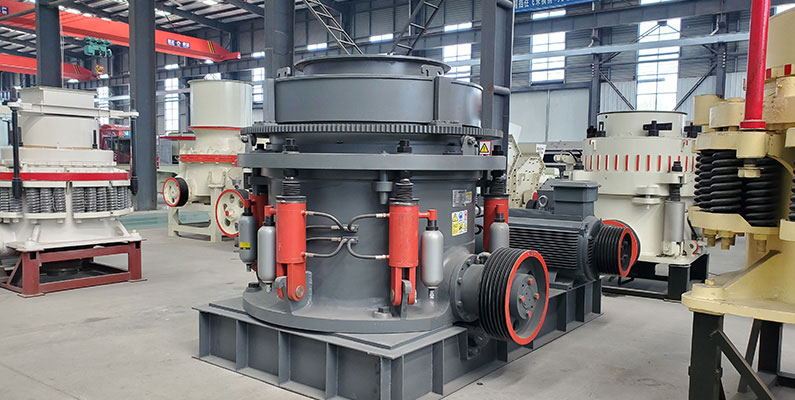

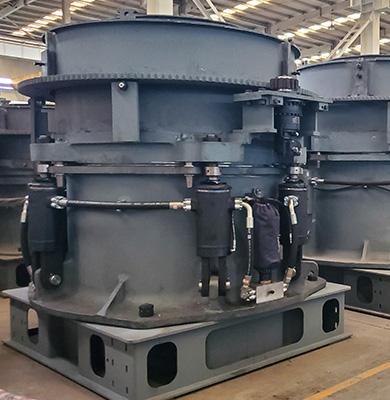

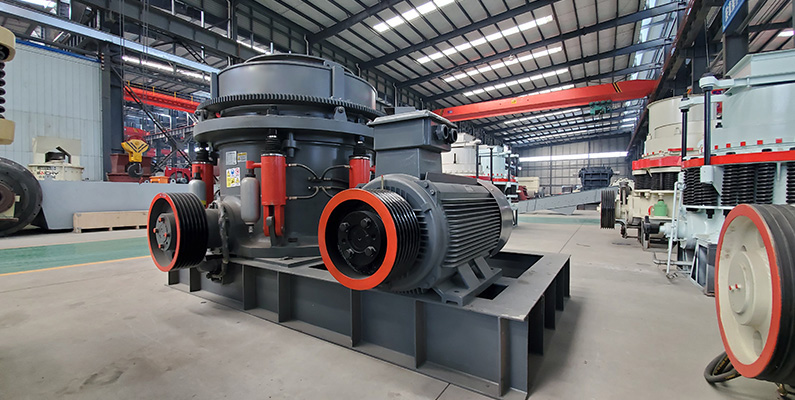

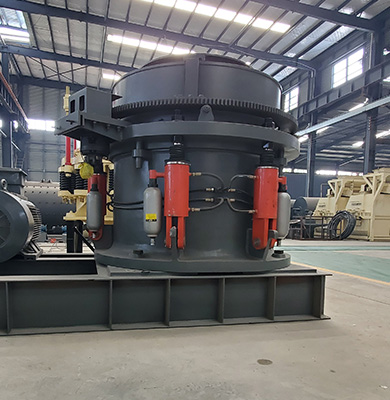

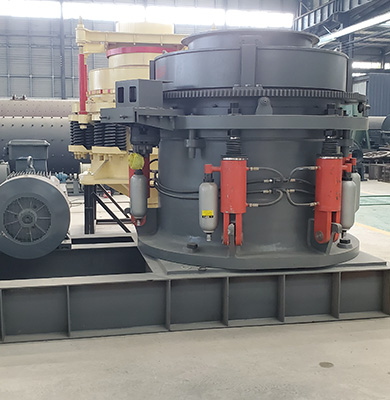

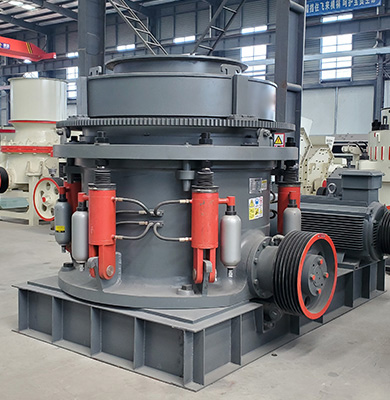

Multi-Cylinder Hydraulic Cone Crusher

HP series multi-cylinder hydraulic cone crusher is new generation of crusher which adopts the advance technology and base on FLAMCO years’ experience on cone crusher. Its performance is at the advanced level of the industry.
It is suitable to crush hard and mid-hard ores and rocks.
Feeding Size: 50-240mm
Capacity: 50-650tph
Multi-Cylinder Hydraulic Cone Crusher
Features and benefits
01
The fixed main shaft and the anti-swing mechanism design improve the hand of the main shaft, enhance the stability of the moving cone, and improve the service life of the parts.
02
The principle of lamination and crushing and full cavity feeding method can obtain better product particle shape.
03
The overload protection system adopts independent innovation design, advanced relief valve system control, replaces the traditional release cylinder accumulator device, improves the overload speed, and reduces the failure rate of the iron passing device.
04
HP cone crusher use the high-performance and non-contact labyrinth seal , greatly improves dust-proof reliability and reduce the cost of operation and maintenance.
Working principle
The crusher is mainly composed of frame, drive shaft, eccentric sleeve, bowl bearing frame, crushing cone, adjustment device, adjustment sleeve, lubrication system and hydraulic system.
When the crusher is working, the motor drives the eccentric sleeve to rotate through the transmission shaft and a pair of bevel gears, and the axis of the crushing cone is driven by the eccentric sleeve to make a swinging motion, so that the surface of the crushing wall sometimes approaches and sometimes leaves the surface of the rolling mortar wall. , so that the ore is continuously squeezed and broken in the crushing cavity.
The material enters the crusher through the upper feeding port of the crusher, and is discharged through the lower discharge port of the crusher after being crushed.
Technical Specification
Model Cavity Type Standard Type Short Head Type Power
(kw)
Capacity
(t/h)
Weight
Feeding Size(mm) Min Discharge Opening Size (mm) Feeding size(mm) Min Discharge Opening Size (mm)
HP200 Coarse 185 19 76 10 132-200 90-250 14
Medium 125 17 54 6
Fine 95 13 23 6
HP300 Coarse 210 20 75 10 180-250 115-440 19.96
Medium 150 15 50 8
Fine 105 10 20 6
HP400 Coarse 250 25 90 10 280-355 140-630 29.72
Medium 195 20 50 8
Fine 110 14 40 6
HP500 Coarse 285 25 90 13 355-450 175-970 38
Medium 200 20 55 10
Fine
133 16 40 8
