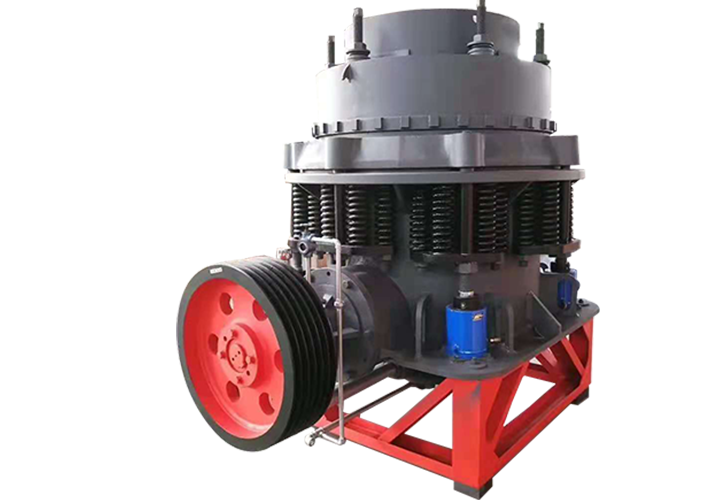

Symons Cone Crusher

Symons Cone Crusher advantages

It has feature of strong crushing force, reliable structure, high efficiency, high capacity ,low operation cost, easy adjustment, economical to use and so on.

In the medium and large type of cone crusher, multi-cylinder hydraulic locking clearing system can decrease downtime and save the working strength.

PSGB series also use the hydraulic locking and machinery which is more reliable.

Each mode has several cavity types, the customer can choose different cavity type according to different requirement.

Working principle

PSGB cone crusher is driven by motor When working, the motor drives the eccentric sleeve to rotate through the V-belt, the large pulley, the transmission shaft, the small bevel gear and the large bevel gear. Sometimes it approaches and sometimes leaves the surface of the rolling mortar wall, so that the material is continuously crushed by impact and bending in the annular crushing cavity composed of the moving cone. After many times of extrusion impact and bending, the material is crushed to the required particle size and discharged through the lower part.

Technical Specification

Model	Type Of Cavity	Diameter Of Cone（mm）	Max Feeding Size(mm)	排料口范围 Discharge Range Opening(mm)	Capacity（tph）	Motor Power(kw)	Weight (kg)
PSGB-915	Fine	914	76	6-19	59-129	75	9980
	Medium		85	9-22	45-91
	Coarse		143	13-38	59-163
	Super coarse		150	25-38	118-163
PSGB-1324	Fine	1295	115	13-31	109-181	160	22460
	Medium		178	16-38	132-253
	Coarse		205	19-51	172-349
	Super coarse		220	25-51	236-358
PSGB1400	Fine	1380	100	19-40	130-260	220	25500
	Medium		180	22-45	180-475
	Coarse		215	25-50	200-500
	Super coarse		235	30-60	210-530
PSGB1676	Fine	1676	178	16-38	181-327	250	43270
	Medium		205	22-51	258-417
	Coarse		228	25-64	299-635
	Super coarse		313	38-64	431-630
PSGB2134	Fine	2134	236	19-38	544-1034	400	86730
	Medium		284	25-51	862-1424
	Coarse		314	31-64	1125-1814
	Super coarse		391	38-64	1252-1941

Still not finding what you're looking for?
Contact our consultants for more available products.

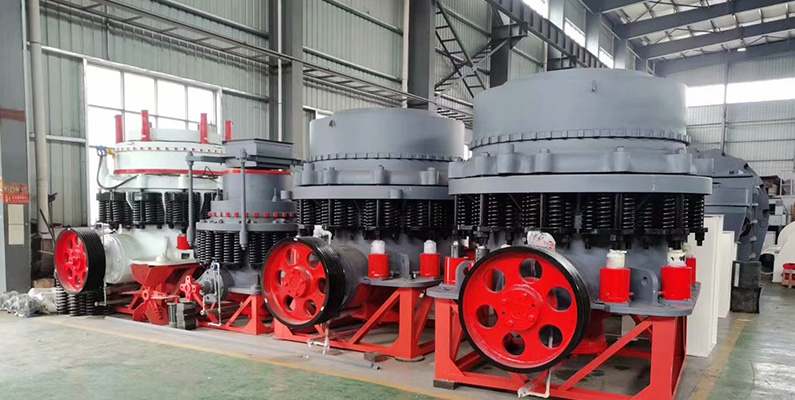

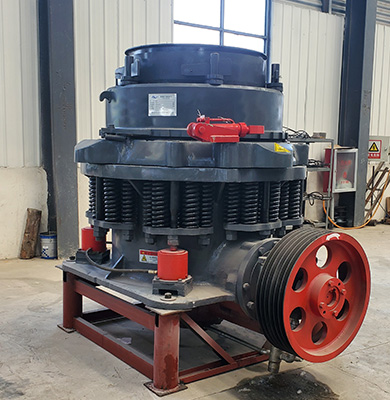

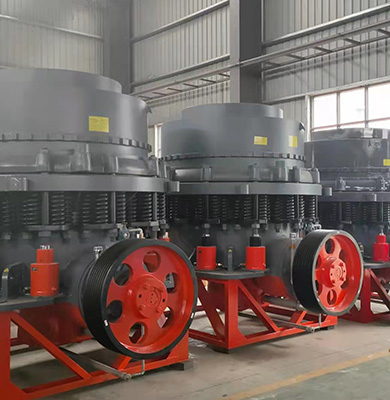

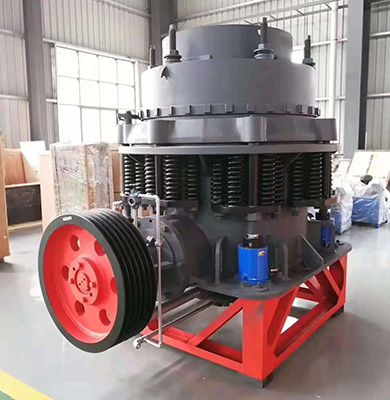

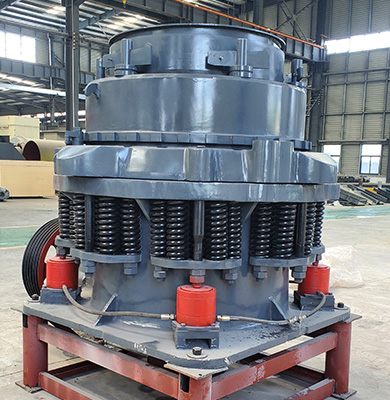

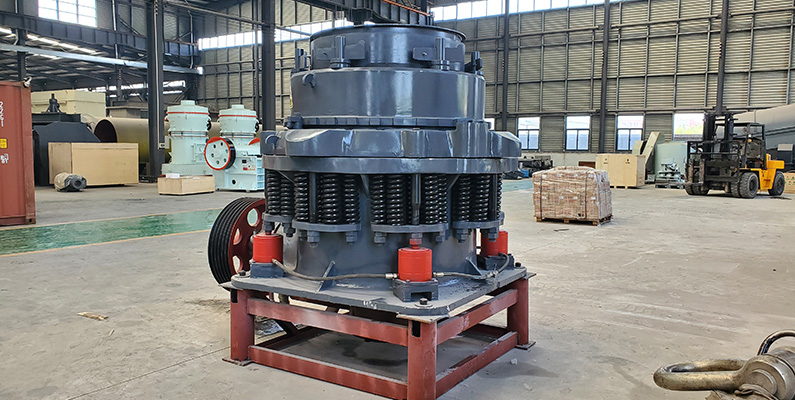

Products Gallery
